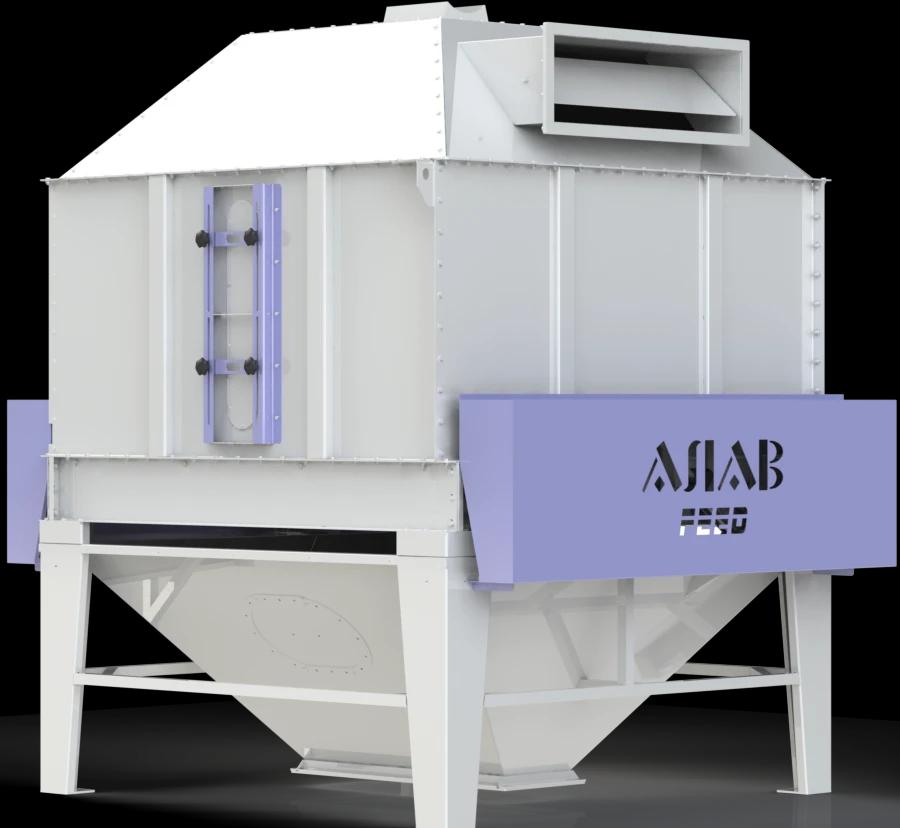

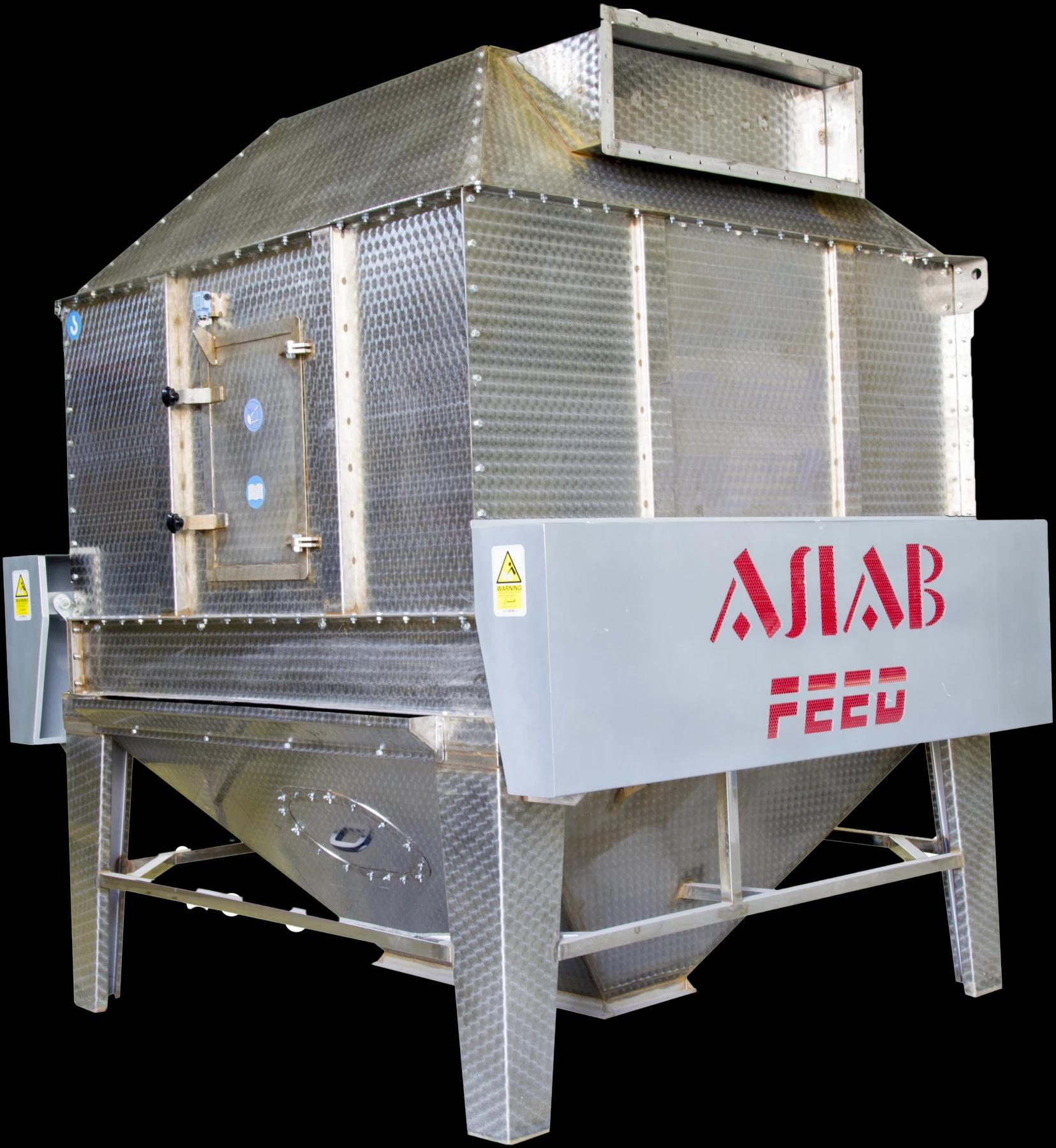

Counterflow Cooler
Minimal Breakage

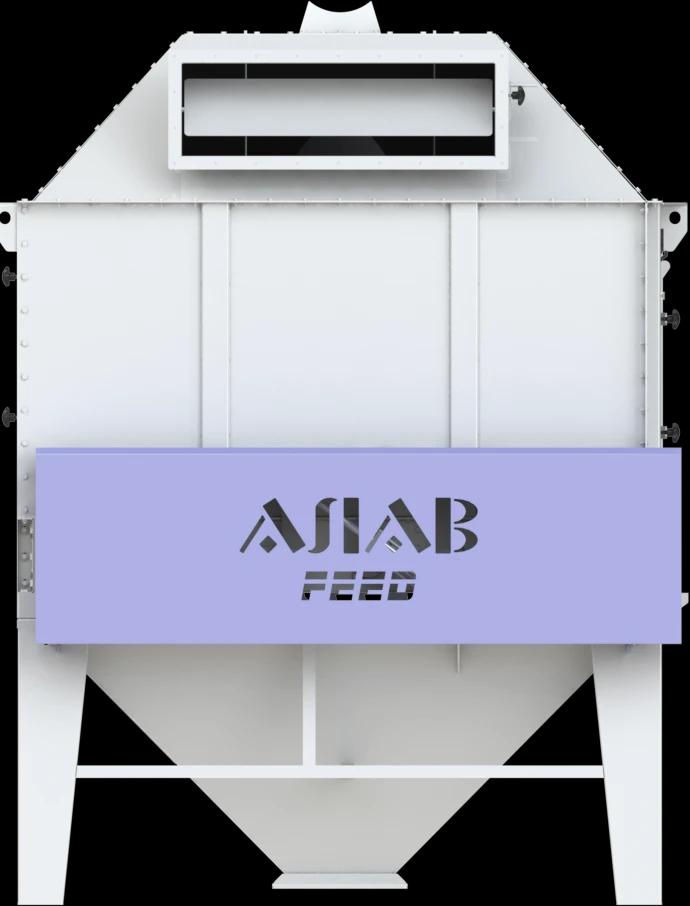

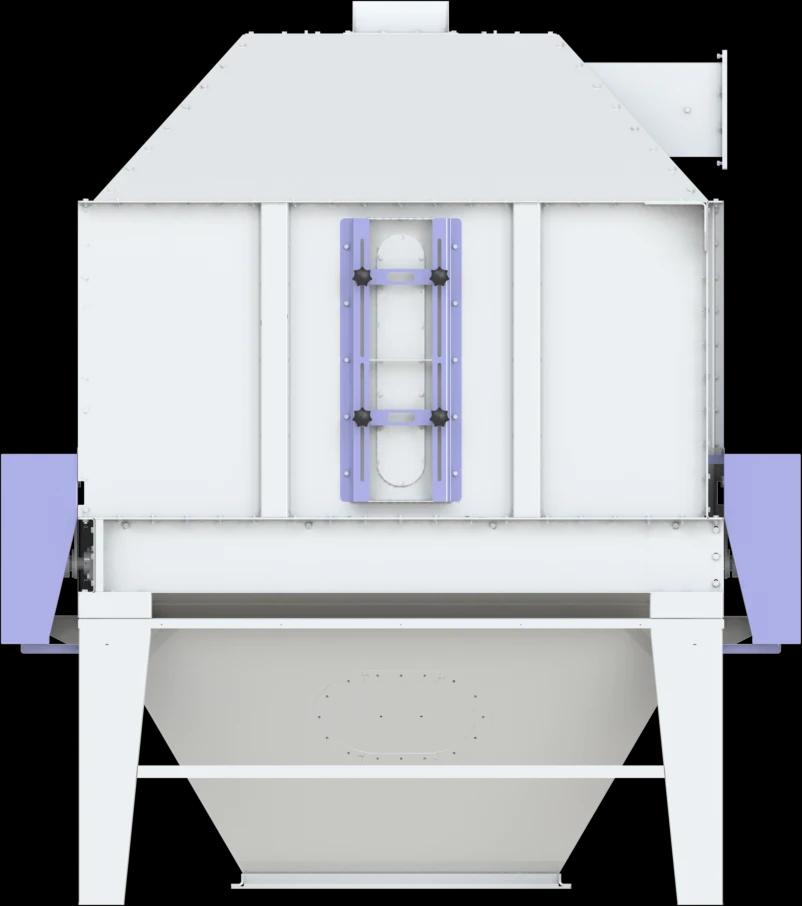

What is Counterflow Cooler?
Counterflow cooler is a type of heat exchanger used in the animal feed industry to cool down the temperature of feed pellets after they have been extruded or expanded. The cooler uses a counterflow principle, where the hot feed pellets are cooled by a stream of cold air that flows in the opposite direction.

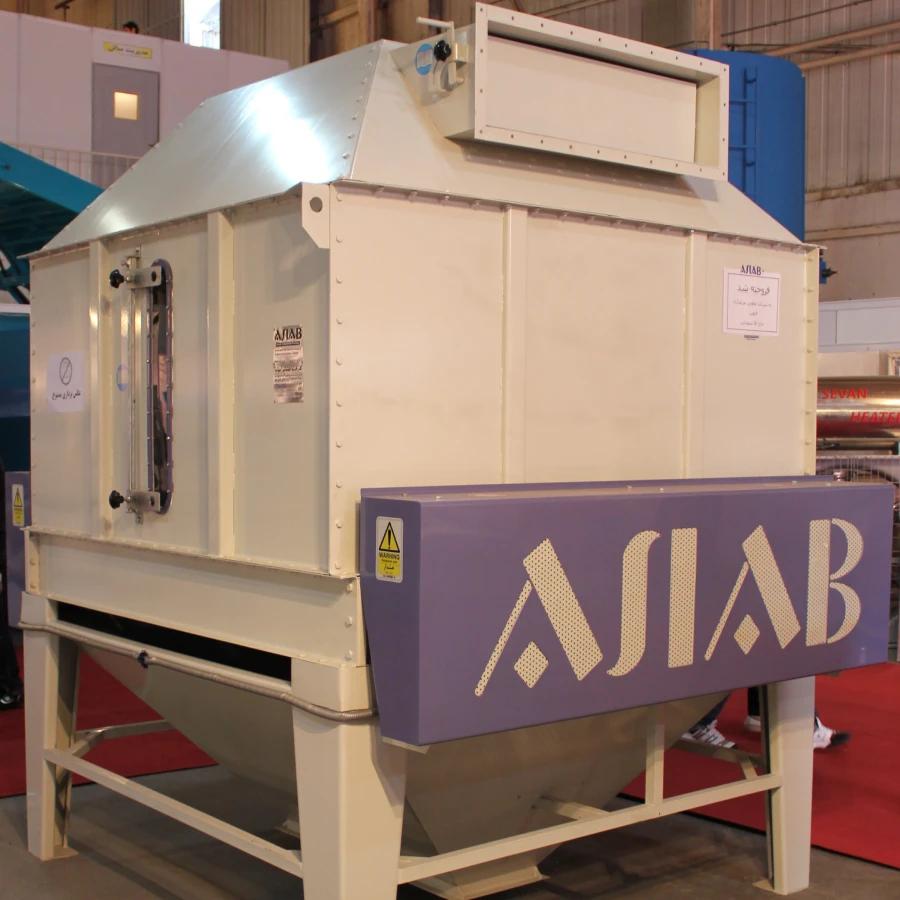

ASIAB Counterflow Cooler...
The countercurrent cooler is an efficient cooling system for your pelleting process. It provides homogeneous cooling and gentle discharge, ensuring high-quality pellets for safe transportation and storage. The airflow reduces temperature from 70–90°C to 5–10°C above ambient temperature, preventing the growth of mildew and bacteria and ensuring consistent pellet quality.
Features
make our machine a perfect fit for your needs
Cooling
Homogeneous cooling

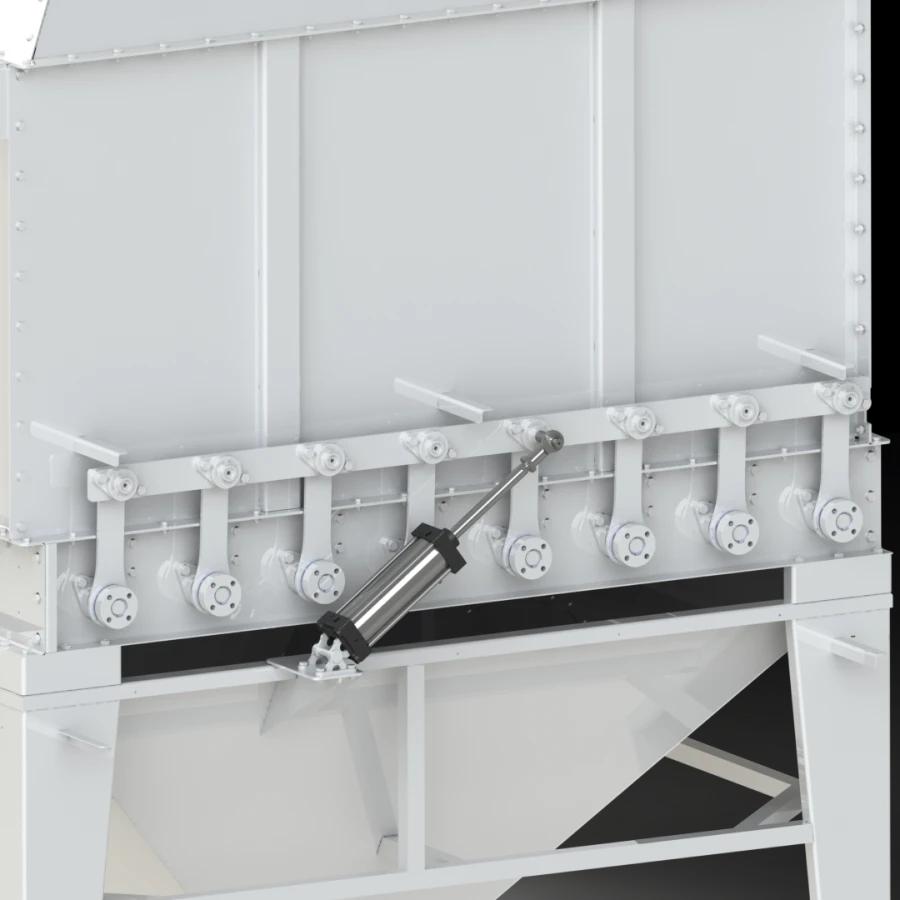

Usability & Maintenance
Operator friendly machine

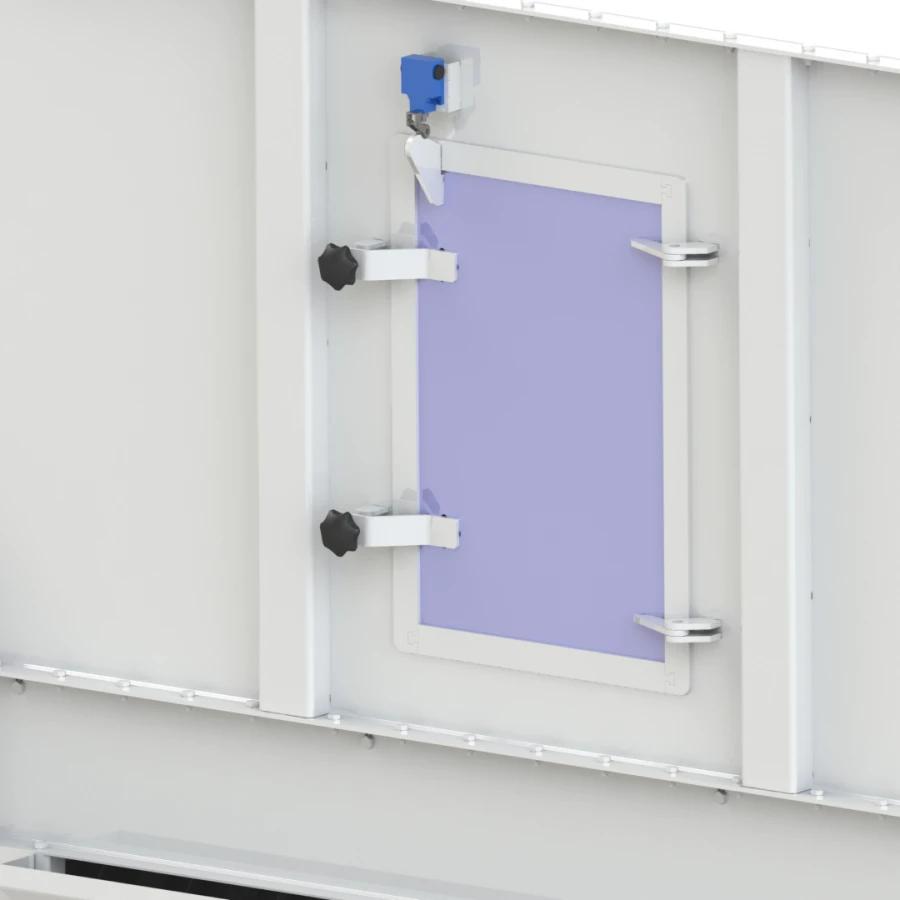

Safety & Protection
Safety is a top priority in our design

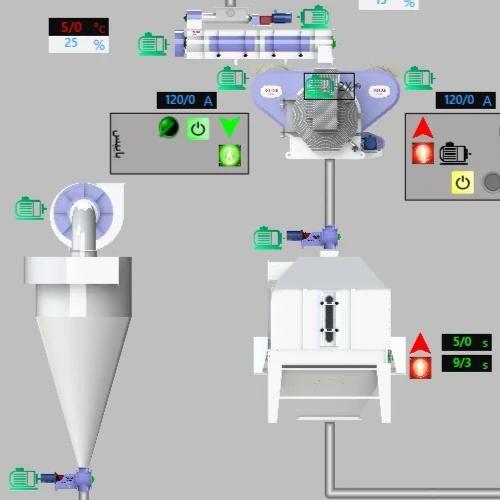

Automation & Control
Smart people, smart machine
Specifications
technical details of our machine models for your selection
| Model | Size(mm) | Capacity(tph) | Fan Power(KW) | Fan Motor Rpm |
|---|---|---|---|---|
| OC16 | 1600 | 4 - 6 | 7.5 | 3000 |
| OC18 | 1600 | 8 - 12 | 11 | 1500 |
| OC20 | 1600 | 15 - 20 | 15 | 1500 |
| OC24 | 1600 | 20 - 25 | 18.5 | 1500 |
Dimensions
of machine for transportation and plant space & layout optimization
| Model | Width(mm) | Length(mm) | Height(mm) | Weight(KG) |
|---|---|---|---|---|
| OC16 | 1234 | 1234 | 1234 | 1234 |
| OC18 | 1970 | 2300 | 2550 | 910 |
| OC20 | 2210 | 2540 | 2870 | 1200 |
| OC24 | 2470 | 2790 | 3015 | 1600 |
Related Machines
that are somehow similar or connected to this machine
Super Processor
Super hygienic processor machines can condition materials by adding steam, water, or other liquids to create a uniform mixture that is easier to pelletize and is similar to a conditioner which is an essential component in modern animal feed manufacturing facilities, providing numerous benefits.

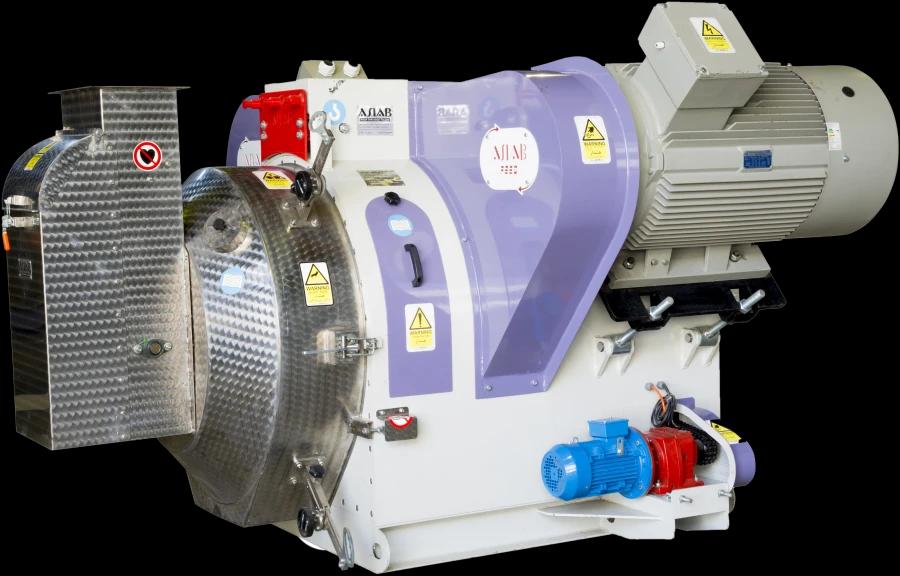

Pellet Mill
