Pellet Mill
Robust | Reliable
What is Pellet Mill?
Pellet mill is a type of machinery used to convert materials into pellets. Pellets are small, dense, and uniform pieces of material that can be easily stored, transported, and used as fuel or feedstock in various industries.Pellet mills can efficiently convert large quantities of material into compact, energy-dense pellets.

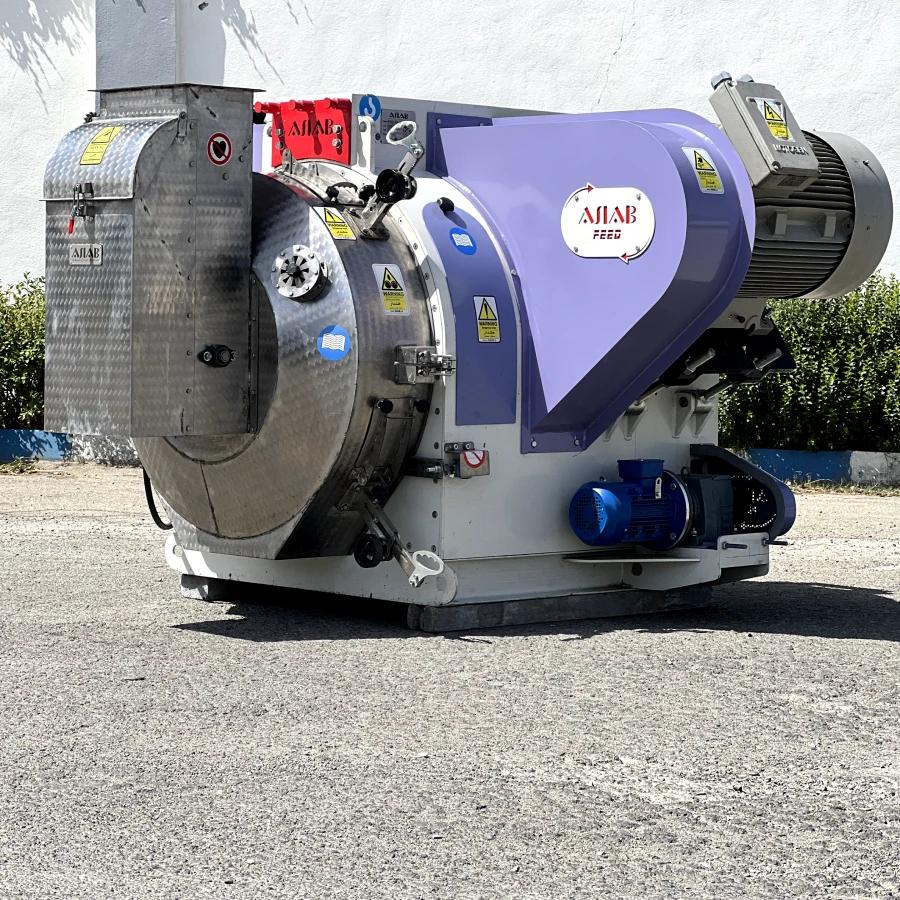

ASIAB Pellet Mill...
More than 40 years of experience in development, engineering, and production ensures quality and continuity. We fully understand how to pellet a wide range of materials. Our expertise focuses not only on creating pellets, in partnership with you we strive for a process that improves the feed conversion rates, nutrition and safety of your pellets. Our pellet mill RWPR has been specifically designed to withstand the roughest pelleting conditions that can achieve maximum throughputs. With robust reliability and ease of operation, ASIAB pellet mill is backed by the our service and support team to make you sure you trust to right one.
Features
make our machine a perfect fit for your needs

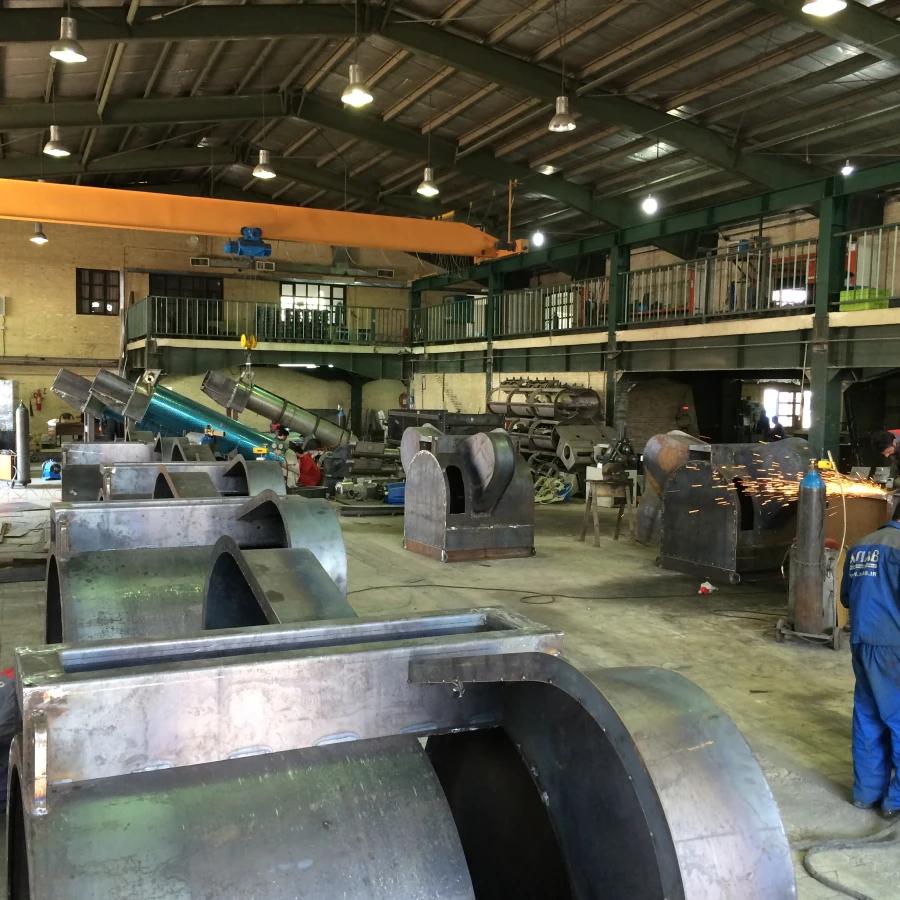

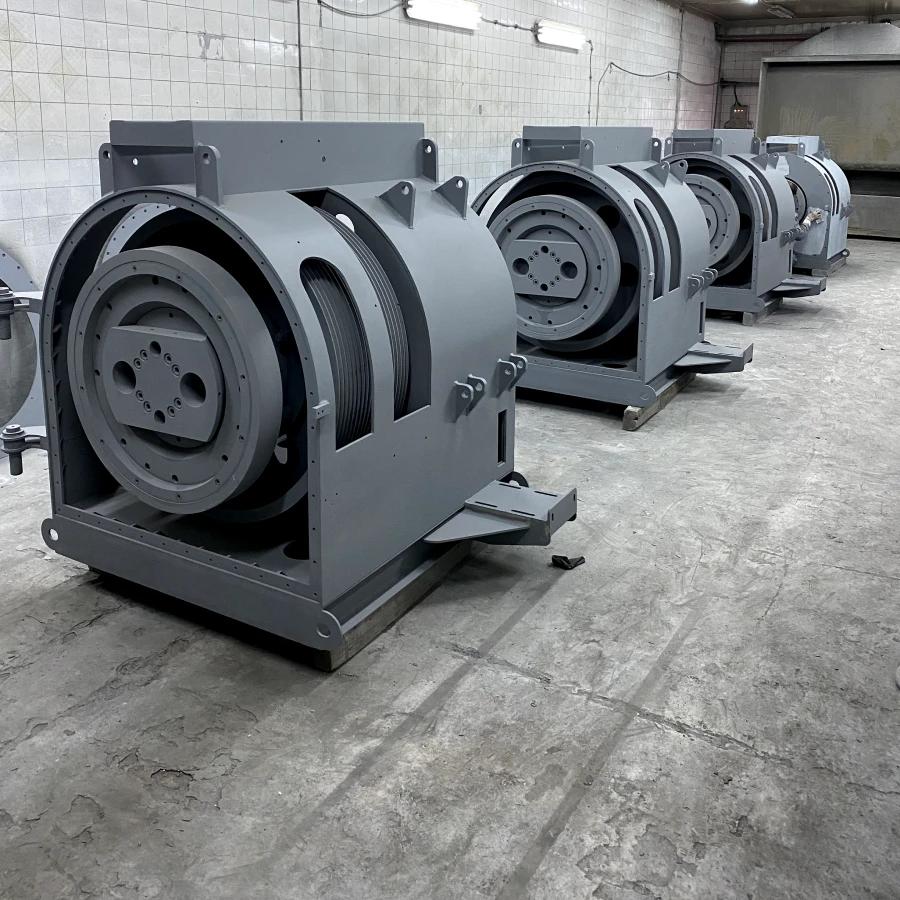

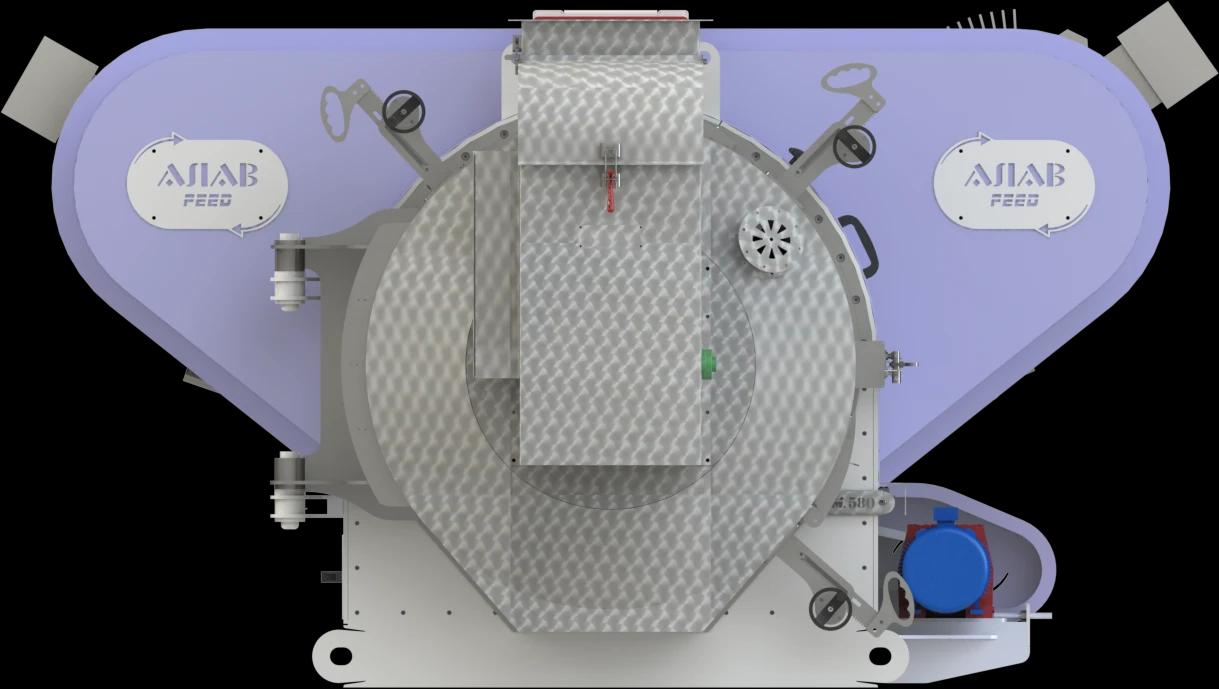

Structure & Body
As durable as possible

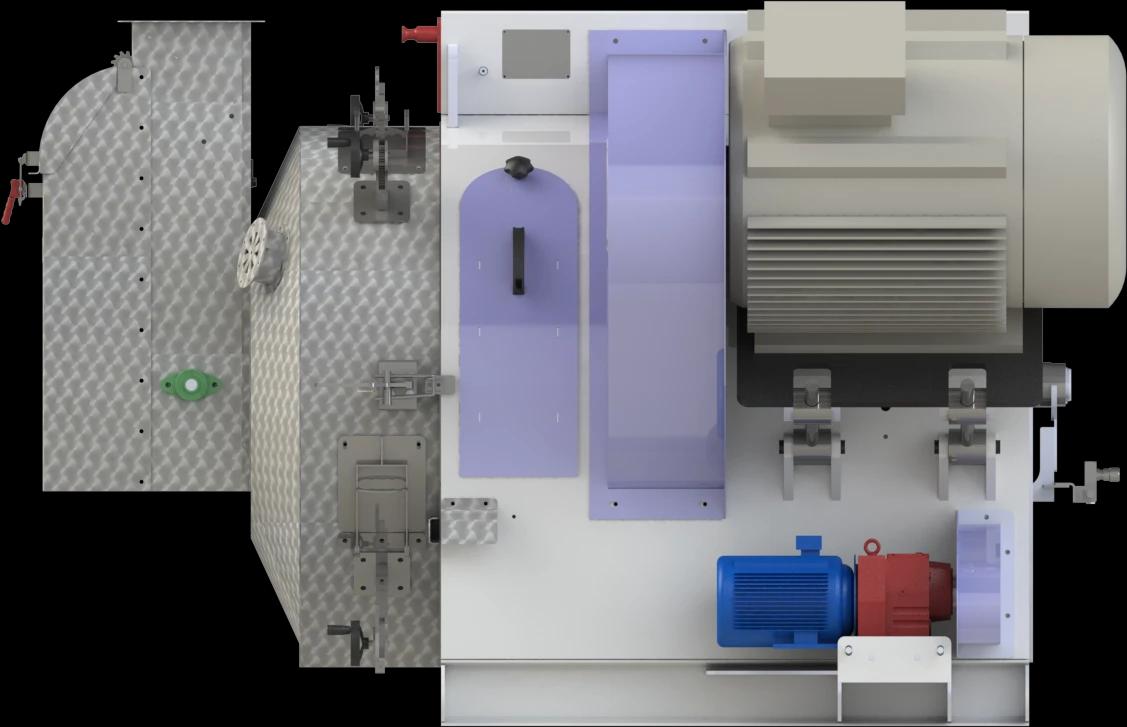

Usability & Maintenance
Simpler usage and maintenance

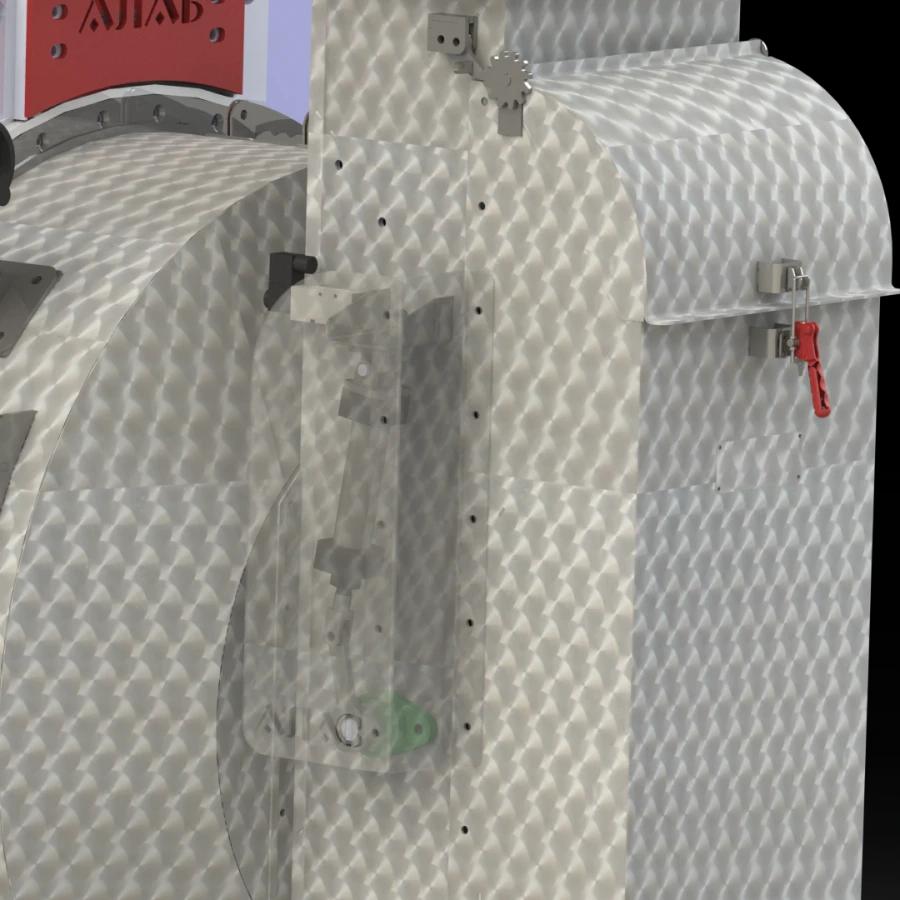

Safety & Protection
Safety is the most important thing

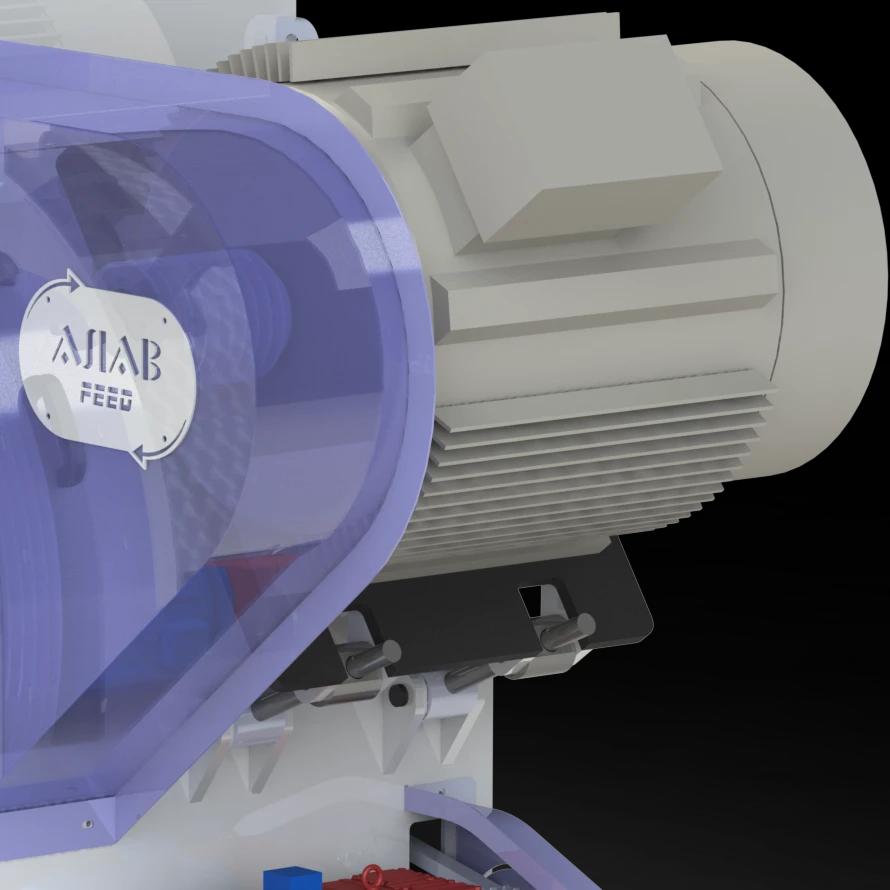

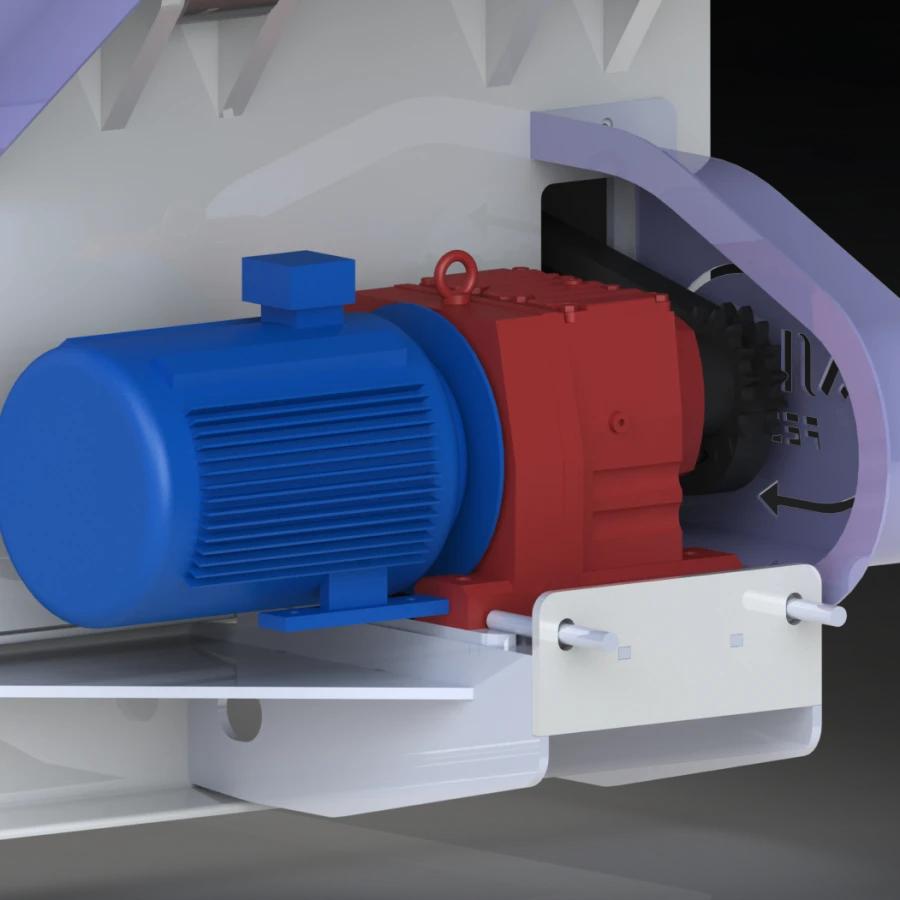

Power & Transmission
Efficient and powerful enough

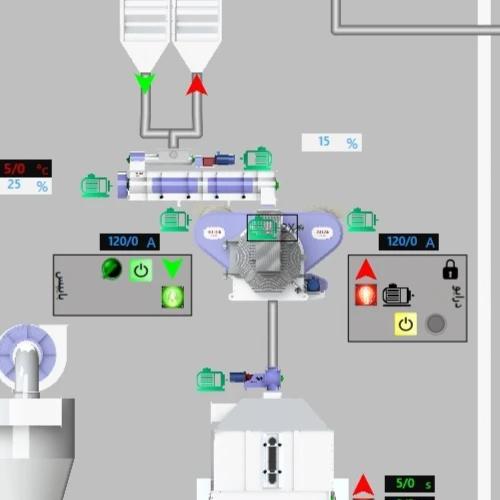

Automation & Control
Smart people, smart machine
Bypass
Less stoppages, more uptime
Options
Always fit your needs
Specifications
technical details of our machine models for your selection
| Model | Capacity(tph) | Power(KW) | Die Size(mm) | Motor Rpm |
|---|---|---|---|---|
| PM3510 | 3-5 | 2 x 37 | 350 x 108 | 1500 |
| PM4210 | 3-5 | 2 x 37 | 420 x 108 | 1500 |
| PM4213 | 5-7 | 2 x 55 | 420 x 138 | 1500 |
| PM5813 | 10-12 | 2 x 75 | 580 x 138 | 1500 |
| PM5817 | 12-15 | 2 x 75 | 580 x 178 | 1500 |
| PM6617 | 15-17 | 2 x 90 | 660 x 178 | 1500 |
| PM6622 | 18-22 | 2 x 110 | 660 x 228 | 1000 |
Dimensions
of machine for transportation and plant space & layout optimization
| Model | Width(mm) | Length(mm) | Height(mm) | Weight(KG) |
|---|---|---|---|---|
| PM3510 | 2113 | 1558 | 1812 | 1500 |
| PM4210 | 2113 | 1558 | 1812 | 1800 |
| PM4213 | 2200 | 2150 | 1510 | 2900 |
| PM5813 | 2825 | 2395 | 1520 | 4000 |
| PM5817 | 2800 | 2395 | 1525 | 4850 |
| PM6617 | 2655 | 2875 | 1700 | 5900 |
| PM6622 | 2580 | 2770 | 1700 | 6200 |
Related Machines
that are somehow similar or connected to this machine
Super Processor
Super hygienic processor machines can condition materials by adding steam, water, or other liquids to create a uniform mixture that is easier to pelletize and is similar to a conditioner which is an essential component in modern animal feed manufacturing facilities, providing numerous benefits.
Feeder Conditioner
A feeder conditioner is a piece of equipment used to process and condition materials before they are fed into a larger machine or system. The purpose of a feeder conditioner is to prepare the material for further processing before they are pelletized or extruded into animal feed.
Crumbler
Crumbler is a device used to break up pellets into smaller pieces, typically for use in animal feed or fertilizer production. Pellet crumblers are designed to reduce the size of pellets while minimizing the generation of fines and dust.
Counterflow Cooler
Counterflow cooler is a type of heat exchanger used in the animal feed industry to cool down the temperature of feed pellets after they have been extruded or expanded. The cooler uses a counterflow principle, where the hot feed pellets are cooled by a stream of cold air that flows in the opposite direction.
