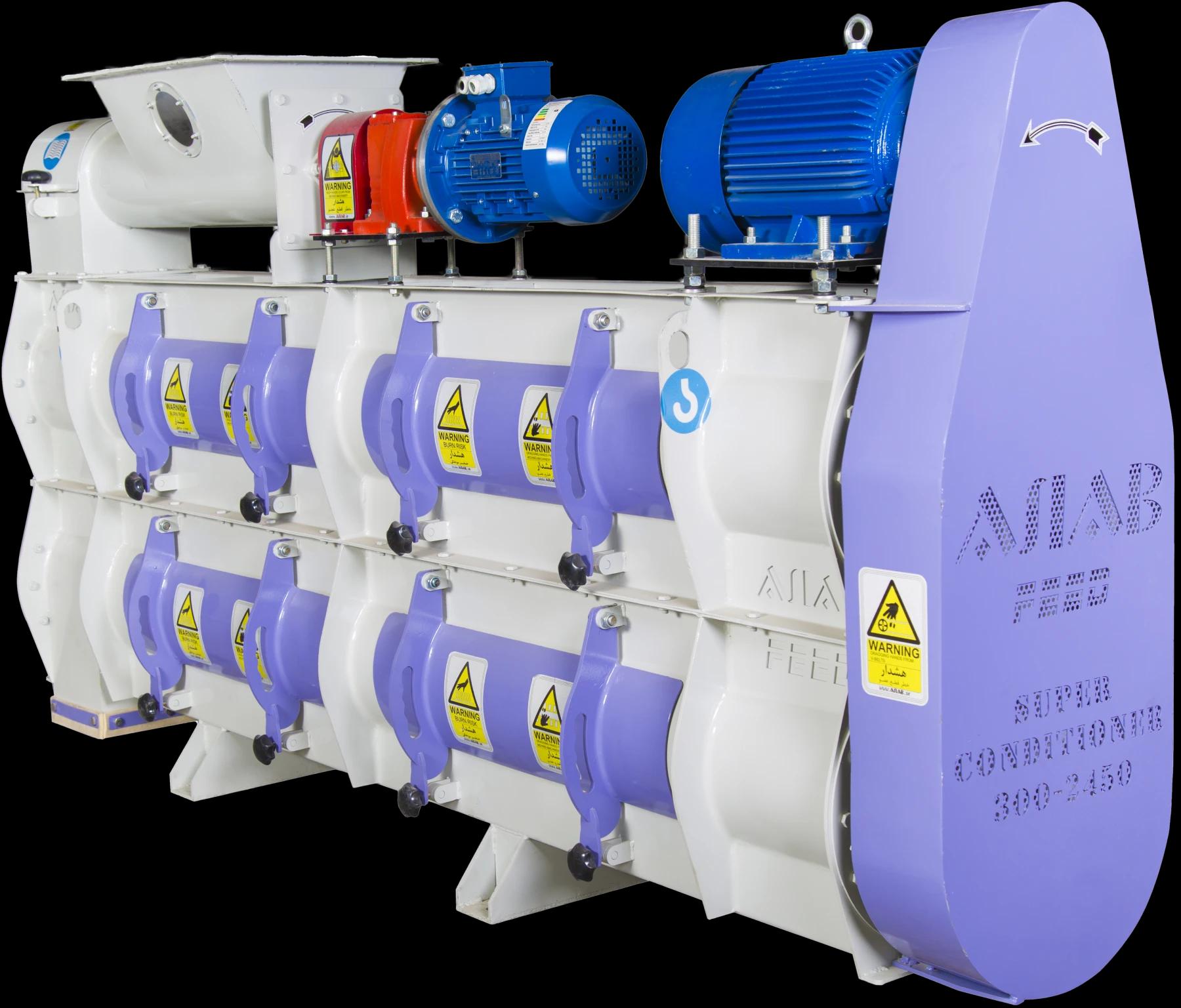

What is Feeder Conditioner?
A feeder conditioner is a piece of equipment used to process and condition materials before they are fed into a larger machine or system. The purpose of a feeder conditioner is to prepare the material for further processing before they are pelletized or extruded into animal feed.

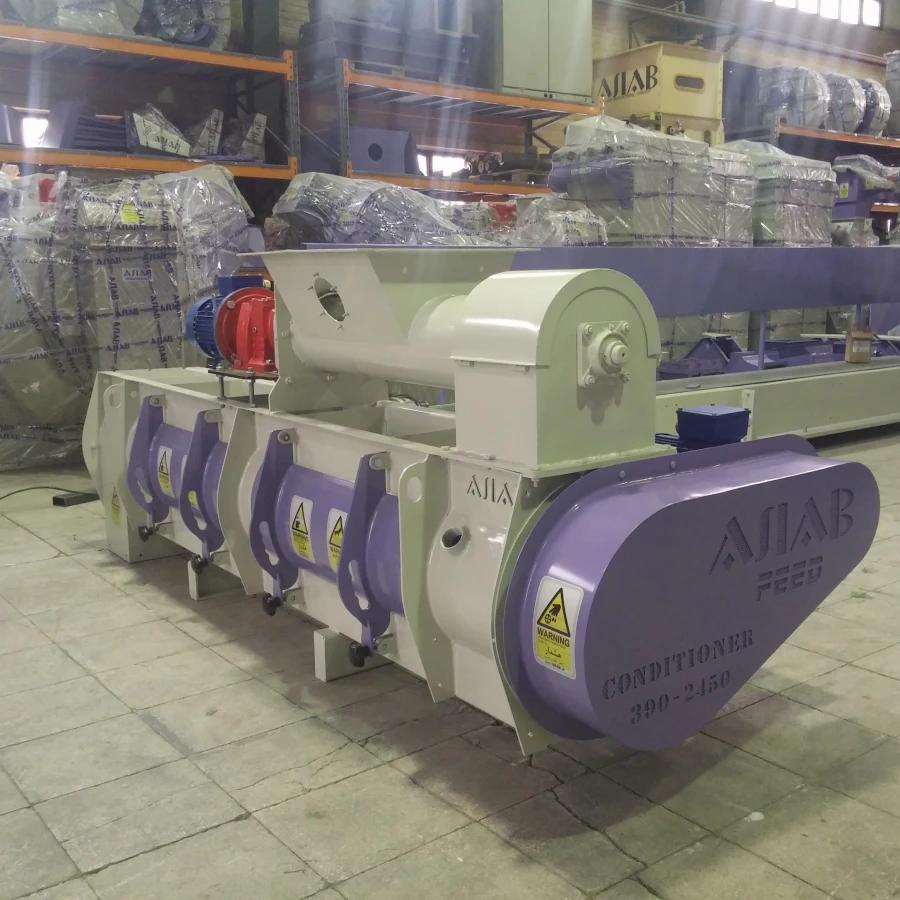

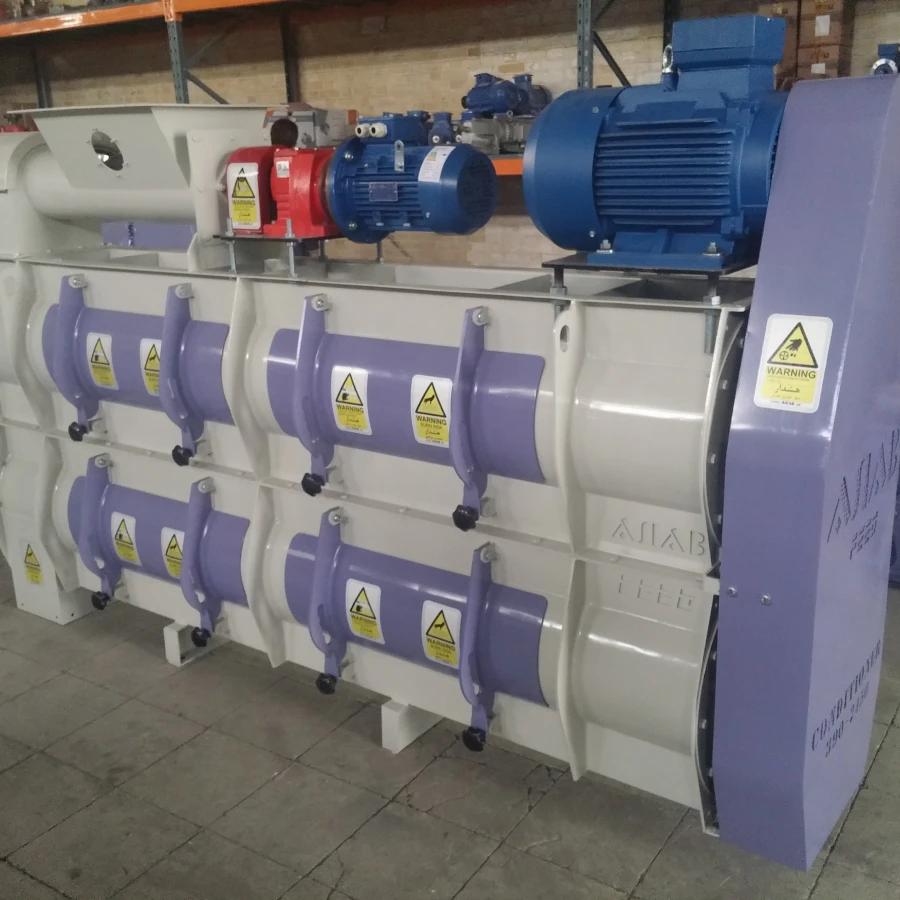

ASIAB Feeder Conditioner...
Quality pellets are a result of just the right combination of moisture, temperature, and retention time. Conditioning holds your dry raw material in a warm, moist environment before it is discharged into the pellet mill. This machine can reduce start-up times by up to 60% which can save mechanical and electrical energy during the conditioning and pelleting process. The ASIAB conditioner operates with direct steam, injected directly into the feed, and with the heat transferred from the body of the machine.
Features
make our machine a perfect fit for your needs
Usability & Safety
Safe and easy to use

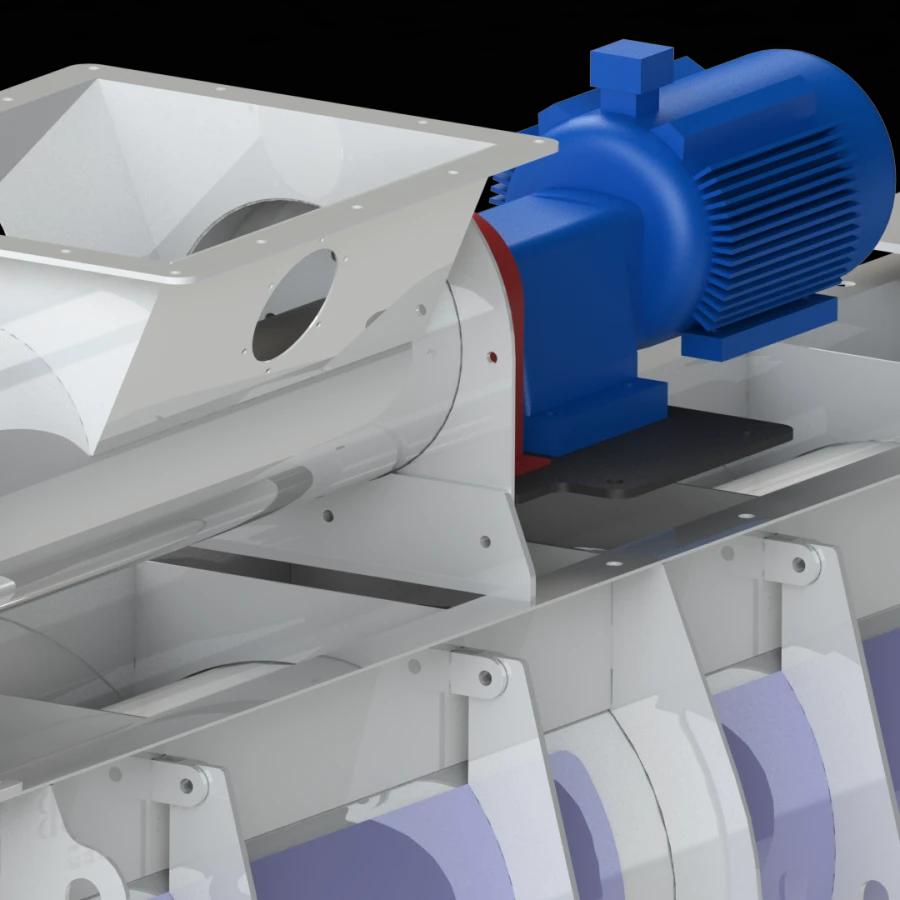

Power & Transmission
Energy Efficient Power

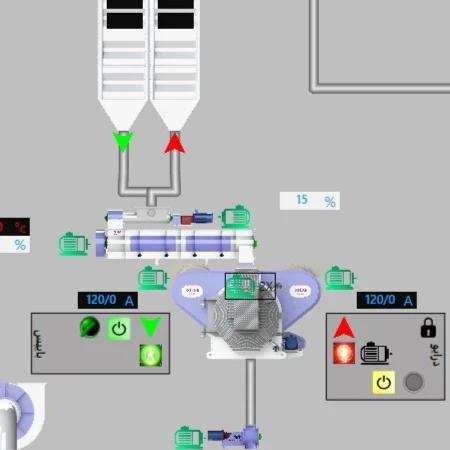

Automation & Control
Full control over your smart machine

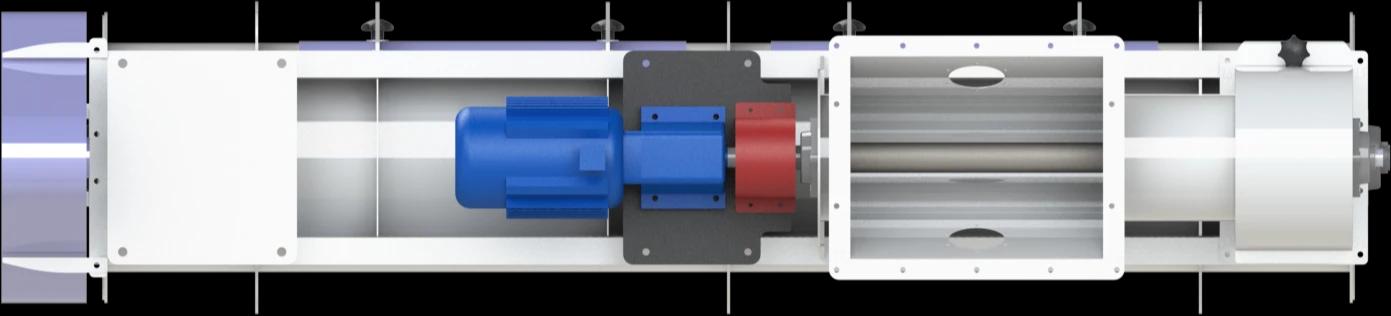

Input feeder
Smart Feeding system

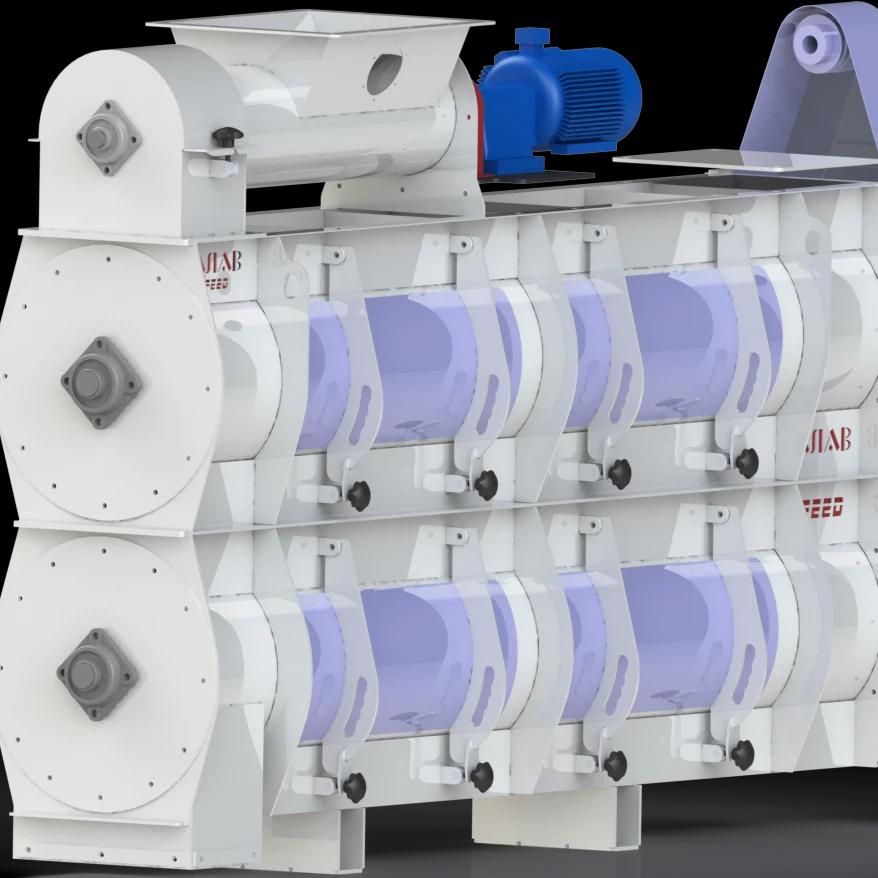

Cooking & Conditioning
Homogeneous Cooking

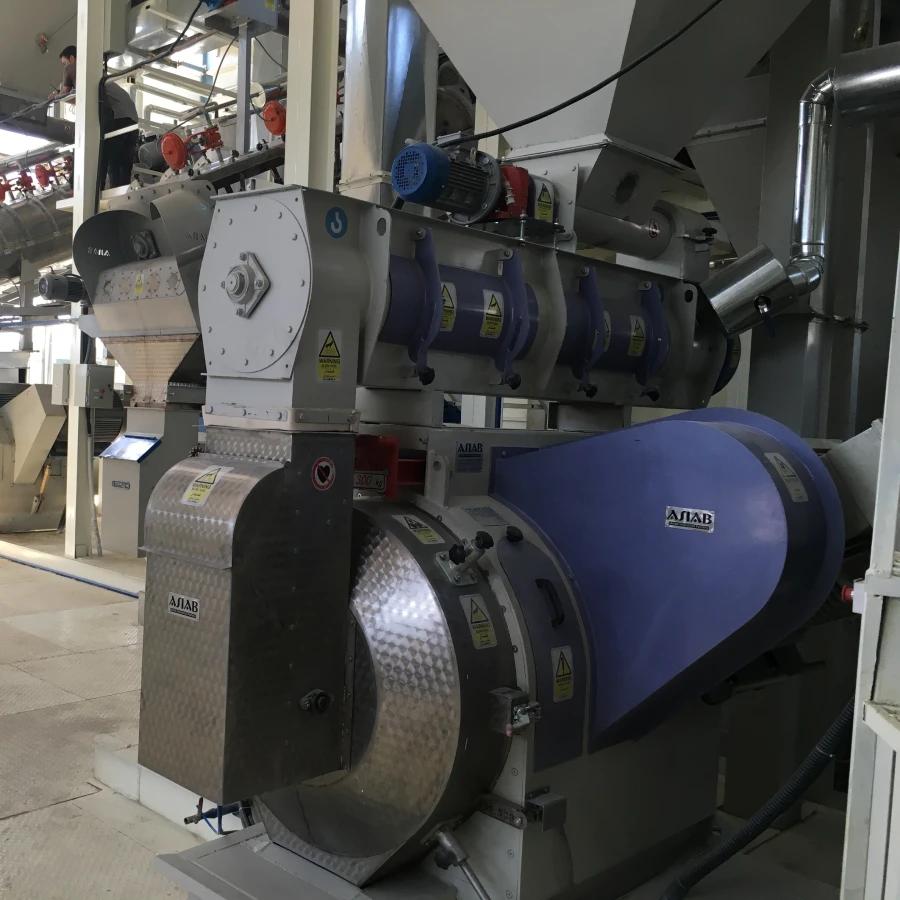

Pellet mill
Pellet quality starts in the conditioner

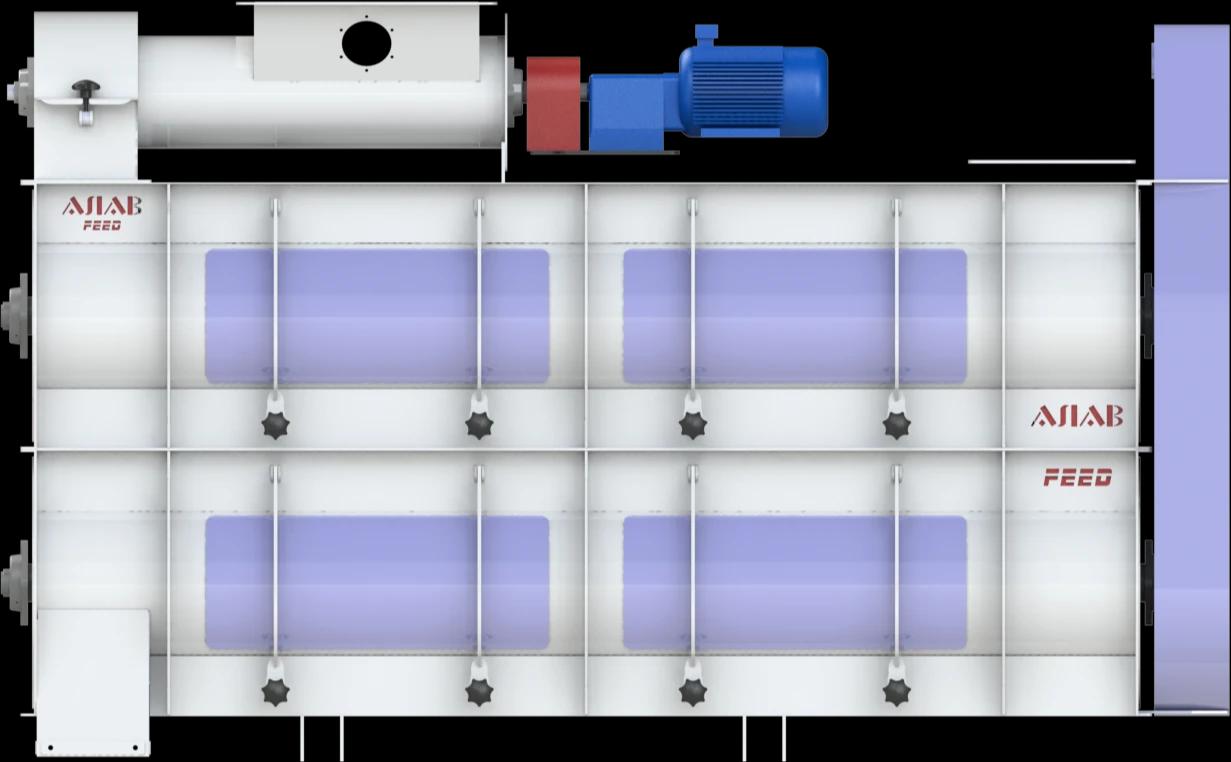

Specifications
technical details of our machine models for your selection
| Model | Type | Capacity(tph) | Volume(L) | Feeder Power(KW) | Mixer Power(KW) |
|---|---|---|---|---|---|
| PC3020 | Single | 2-3 | 141 | 1.1 | 4 |
| PC3024 | Single | 3-5 | 173 | 1.1 | 4 |
| PCD3024 | Double | 4-6 | 346 | 1.5 | 4 |
| PC3924 | Single | 8-10 | 292 | 1.5 | 4 |
| PCD3924 | Double | 8-12 | 584 | 2.2 | 7.5 |
| PC4524 | Single | 14-16 | 389 | 1.5 | 7.5 |
| PCD4524 | Double | 18-22 | 778 | 2.2 | 11 |
Dimensions
of machine for transportation and plant space & layout optimization
| Model | Width(mm) | Length(mm) | Height(mm) | Weight(KG) |
|---|---|---|---|---|
| PC3020 | 900 | 2350 | 750 | 270 |
| PC3024 | 971 | 2734 | 984 | 340 |
| PC3924 | 1065 | 2718 | 1053 | 440 |
| PC4524 | 1110 | 2736 | 1136 | 580 |
| PCD3024 | 1440 | 2731 | 1426 | 490 |
| PCD3924 | 1600 | 2725 | 1600 | 570 |
| PCD4524 | 1610 | 2726 | 1714 | 760 |
